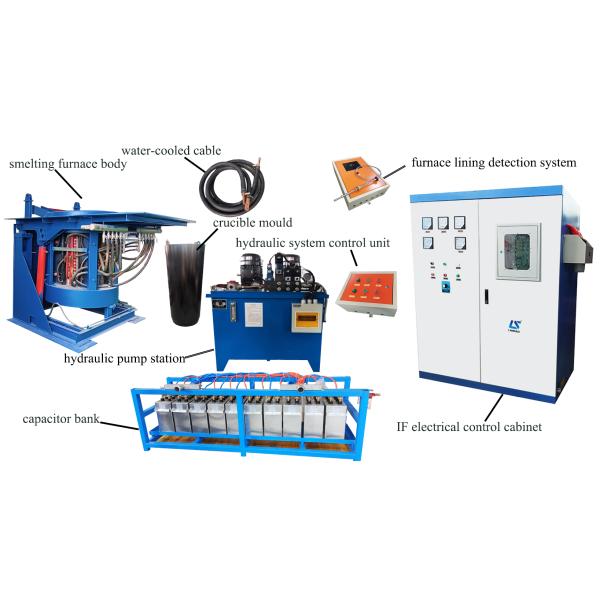

KGPS-2T 1400KW Steel Shell large capacity copper scrap melting furnace
1. Brief Introduction of Steel Shell Induction Melting Furnace:
The steel structure induction melting furnace adopts 2 hydraulic cylinders as the way of tilting the furnace, and it is generally called a steel shell furnace.
Product main features:
a. Automatic equipment, easy to operate, high stability
b. High efficiency and energy consumption less than 550KWH/T
c. Electronic components using well-know brands at home and abroad
2. Technical Parameter of Steel Shell Induction Melting Furnace:
| Furnace Model | Rated Capacity | Rated Power | MF Frequency | Power Input Voltage | MF Output Voltage | Melting Time | Electricity Consumption | Transformer Capacity Required |
| T | KW | KHZ | V | V | Minutes/T | KWH/T | KVA |
| KGPS-250 | 0.25 | 250 | 1 | 380 | 750 | 65 | 680 | 300 |
| KGPS-400 | 0.5 | 400 | 1 | 380 | 1600 | 65 | 680 | 400 |
| KGPS-500 | 0.75 | 500 | 1 | 380 | 1600 | 65 | 650 | 600 |
| KGPS-700 | 1 | 700 | 0.7 | 660 | 2400 | 60 | 640 | 800 |
| KGPS-1000 | 1.5 | 1000 | 0.7 | 660 | 2400 | 60 | 640 | 1000 |
| KGPS-1400 | 2 | 1400 | 0.5 | 750 | 2400 | 65 | 640 | 1800 |
| KGPS-2000 | 3 | 2000 | 0.5 | 950 | 3200 | 65 | 640 | 1800 |
| KGPS-3000 | 5 | 3000 | 0.5 | 950 | 3200 | 70 | 620 | 2500 |
| KGPS-4000 | 6 | 4000 | 0.5 | 950 | 3600 | 70 | 600 | 3150 |
| KGPS-4500 | 8 | 4500 | 0.3 | 950 | 3600 | 70 | 580 | 4000 |
| KGPS-6000 | 10 | 6000 | 0.3 | 950 | 3600 | 65 | 550 | 5000 |
| KGPS-8000 | 12 | 8000 | 0.3 | 950 | 5000 | 60 | 520 | 6300 |
| KGPS-9000 | 15 | 9000 | 0.3 | 950 | 5000 | 70 | 500 | 8000 |
3. Advantages of Steel Shell Melting Furnace:
1) Rugged and elegant, especially for large-capacity furnaces, which require a strong rigid structure. From the safety point of the tilting furnace, try to use steel shell furnace.
2) The yoke made of silicon steel sheet shields and emits magnetic lines generated by the induction coil, reduces magnetic leakage, improves thermal efficiency, increases production, and saves energy by 5%-8%.
3) The presence of the furnace cover reduces heat loss and increases the safety of the equipment.
4) Long service life, steel shell furnace due to less magnetic leakage, equipment life is much higher than aluminum shell furnace. The normal service life is generally more than 10 years.
5) Safety performance :The steel shell furnace is much better than the aluminum shell furnace. When the aluminum shell furnace is smelted, the aluminum shell is easily deformed due to high temperature and heavy pressure, and the safety is poor. The steel shell furnace uses a hydraulic tilting furnace and is safe and reliable.
4. Large Induction Melting Furnace Application:
(1) iron, pig iron, cast iron;
(2) steel, stainless steel, cast steel, carbon steel and bearing steel;
(3) gold, silver, platinum;
(4) copper, brass, bronze;
(5) aluminum, aluminum alloy;
(6) zinc, lead, tin, magnesium, nickel, titanium.
